DS Particle Tester

Oil Particle Test System

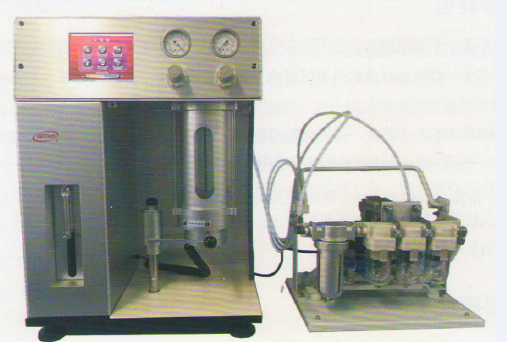

The HDTech HTKLTEST is a particle counting system for desk and batch sampling. The HDTech HTKLTEST is the standard instrument used as a reference in many testing labs. The instrument may be programmed to measure a sample without the need of an operator, like pre-filling the internal dead volume, degassing the sample with vacuum, pressurising the sample for a number of measurement runs, and relieving pressure at the end. High accuracy and repeatability, fast purging and back flush possibility are the key benefits of the system.

Applications

The system is used for hydraulic oils, insulation and turbine oils and organic fluids or solvents. With the software HDTech OTSP, the system may be also used for pharmaceutical applications with higher viscosities.

Viscosity

max. 1600 cSt with optional high pressure pump or with external pressure supply

Volumetric particle sensors
Size range:
 1 - 100 µm with calibration according to ISO 4402
4 - 70 µm(c) with calibration according to ISO 11171
Max. particle concentration: 24,000 p/ml at 25 ml/min

Software
HDTech OTSP for the contamination control of clean liquids
