HDFX Element

General Description

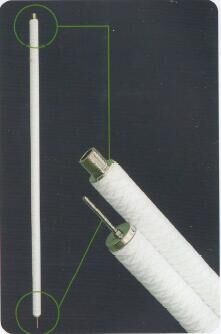

HDFX Series String Wound Filter Cartridge is depth filter cartridge, use of high–performance fiber (polypropylene, cotton, glass fiber, etc.) according to a specific process, tightly wrapped on a porous skeleton(PP or SS support), put an end to the fiber deformation and fiber shedding, can effectively remove suspended solids in the fluid, particulates, rust and other debris, has wide applicability.

Features and Benefits:

High mechanical strength, even under harsh processing conditions is not deformed.

Up to 70 "(1778mm) length, apply to high flow, high dirt holding capacity of Applications.

Simple structure, no acid consumption and waste acid regeneration.

Application:

 RO pre-filtration, desalination pretreatment;

 Power plant condensation water filtration;

 Paints, coatings, petrochemical, refining;

Microelectronics, films, fibers, resins.

Dimensions(nominal):

OD: 50mm, 60mm    ID: 25mm, 28mm        Length: 70"(1778mm), 60" (1524mm)

Parts Material

Filter Media: Polypropylene, Cotton, Glass Fiber

Support Core: Stainless steel 304/316

Micron：1μm, 5μm, 10μm

Maximum operating temperature：85℃

Maximum operating differential pressure: 2.45Bar

Design Flow Rate: 2.9m³/h-3.2m³/h

Connection Type: Thread

Connection Thread: M33×1.5, M33×2, G1", 1 3/16〃-24 BSW

Bottom Thread: M6, M8, M10

Ordering Information

Type   Material      Micron(μm)  Length(in.)  Support     Connection Thread  Bottom Thread

HDFX    PP           0500                  70               S1              Z1               W1

      PP: Polypropylene 0100=1      40        S1:304       Z1: M33×1.5      W1:M8

CO: Cotton       0500=5       60        S2:316       Z2: M33×2        W2:M10

                                  1000=10    70            Z3: G1"     W3:M6

                                                                    Z4: 13/16" -24 BSW
