HDM Water Cartridge
General Description

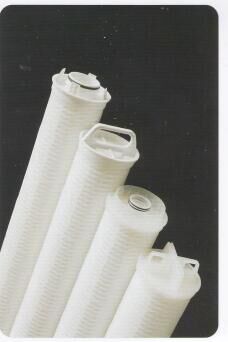

HDM High Flow Filter Cartridge is made of diameter 6.5" and pleated design with high flow area and dirt holding capacity. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.
Application:
RO pre-filtration, desalination pretreatment;
Power plant condensation water filtration;
Biopharmaceutical industry pharmaceutical raw materials, solvents, water filtration;
Food and Beverage process water treatment;
Performance Specifications
Dimensions(nominal)
OD: 6.5" (165mm)
Length: 20",40", 60" (same connection size with 3M HF high flow filter cartridge)
Material of Construction:
Model | Filter Media | Support/Drainage | End Caps | Seals Material |
PP | Deep pleated Polypropylene | Polypropylene | Glass Fiber Reinforced Polypropylene | NBR, EPDM, Viton
|
GF | Glass fiber/polyester | Polyester | Glass Fiber Reinforced Polypropylene |

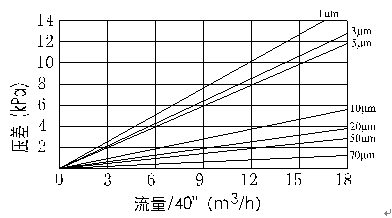

Filter Performance
Micron：1μm, 3μm, 5μm, 10μm , 15μm, 20μm, 50μm, 70μm
Maximum operating temperature：82℃
Maximum operating differential pressure: 3.44bar@82℃
Suggestion pressure for filter replacement: 2.5Bar@20℃
Suggestion Max. flow rate: 20": 35m3/h
40": 70 m3/h
60": 110 m3/h
Ordering Information
Type Material Micron(μm) Length(in.) Pleat Type Support Seals
HDM PP 0500 40 C1 S E
PP: Polypropylene 0100=1 20 C1=Transverse S=Polyester mesh N=NBR
GF: Glass Fiber 0300=3 40 C2=Vertical G=PP outer cage S=Silicone
Polyester 0500=5 60 E= EPDM
1000=10 V=Viton
1500=15
2000=20
5000=50
7000=70
10000=100
