HDK Water Cartridge

General Description

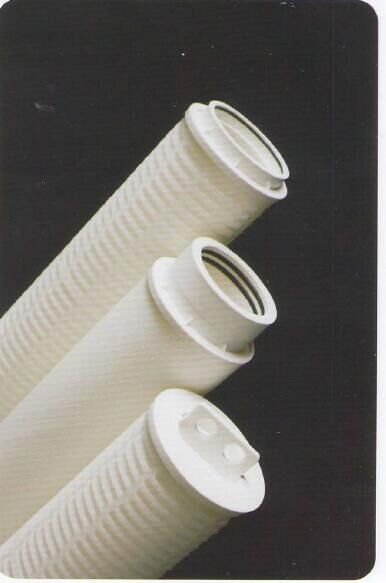

HDK Series High Flow Filter Cartridge is made of diameter 6" and pleated design, with high-strength pp center core, outside to inside flow direction. Outer cage have two types: integral pp cage and polyester mesh.

Application:

● RO pre-filtration, desalination pretreatment and a variety of process water filtration;

● Power plant supplementary water, condensation water, coolant filtration;

● Biopharmaceutical industry pharmaceutical raw materials, solvents, water filtration;

● Petrochemical industry various solvents, quench water, brine and other chemicals filtration.

Dimensions(nominal):

OD: 6" (152mm)

Length: 40"(same connection size with Parker MHF high flow filter cartridge)

Material of Construction:

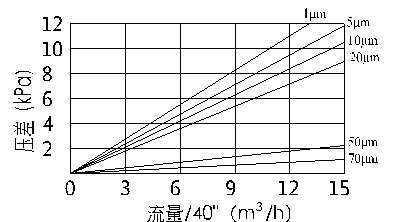

Filter Performance

Micron：1μm, 5μm, 10μm, 15μm , 20μm, 40μm, 70μm

Maximum operating temperature：Pleated Glass Fiber: 121℃

                                Pleated Polypropylene: 82℃

Maximum operating differential pressure:

Pleated Glass Fiber: 3.44bar@121℃

                              Pleated Polypropylene: 3.44bar@82℃

Suggestion pressure for filter replacement: 2.5Bar@20℃

Suggestion Max. flow rate: 40" filter 70m³/h

Ordering Information:

Type       Length(in.)     Material     Micron(μm)     Support           Seals      Connection Type

HDK           40                 PP              0500                       S              E               Z

                    40       PP: Polypropylene  0100=1     S=Polyester mesh  N=NBR   Z= Crossover Sub

                               GF: Glass Fiber    0500=5        G=PP outer cage   S=Silicone

         Polyester      1000=10                    E= EPDM

                              1500=15                    V=Viton

                                                             2000=20

                                                             4000=40

                                                              7000=70
